| 브랜드 이름: | RUYA |
| 모크: | 1세트 |
| 가격: | 협상 가능 |
| 배달 시간: | 3개월 |
| 지불 조건: | 티/티 |

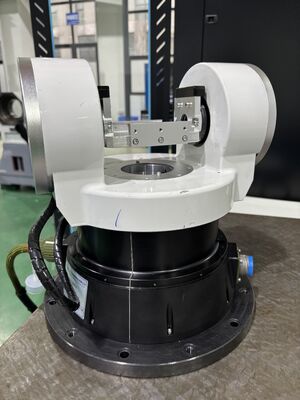

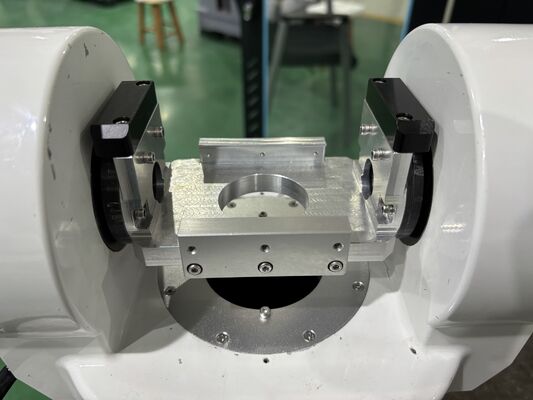

The 2D Hollow Rate Table is a high-end scientific research instrument that integrates high-precision angular positioning with an innovative structural design. Its defining feature is a through-hole situated at the center of the turntable body; while enabling simultaneous 2D rotation around both the pitch and azimuth axes, this design provides an unobstructed physical channel for optical paths, probes, or cables.
| Parameter | Azimuth Axis | Pitch Axis |
|---|---|---|
| Rotation Range | 360° | 360° |
| Hollow Diameter | 60 mm | >15 mm |
| Angular Accuracy | ±2″ | ±2″ |
| Repeatability | ±1″ | ±1″ |
| Resolution | 0.05″ | 0.05″ |
화면
|
|
| 브랜드 이름: | RUYA |
| 모크: | 1세트 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 나무 상자 |
| 지불 조건: | 티/티 |
The 2D Hollow Rate Table is a high-end scientific research instrument that integrates high-precision angular positioning with an innovative structural design. Its defining feature is a through-hole situated at the center of the turntable body; while enabling simultaneous 2D rotation around both the pitch and azimuth axes, this design provides an unobstructed physical channel for optical paths, probes, or cables.
| Parameter | Azimuth Axis | Pitch Axis |
|---|---|---|
| Rotation Range | 360° | 360° |
| Hollow Diameter | 60 mm | >15 mm |
| Angular Accuracy | ±2″ | ±2″ |
| Repeatability | ±1″ | ±1″ |
| Resolution | 0.05″ | 0.05″ |
